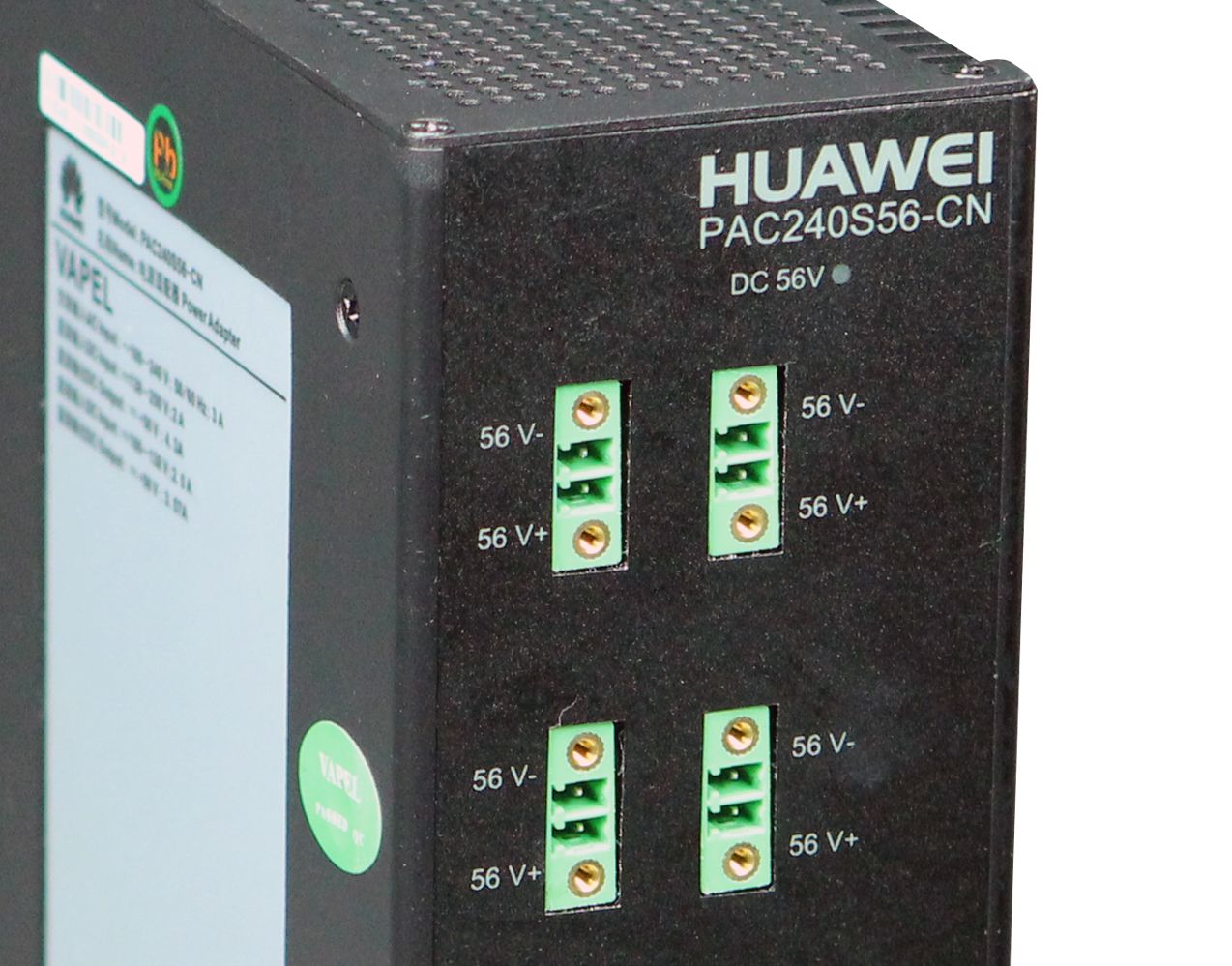

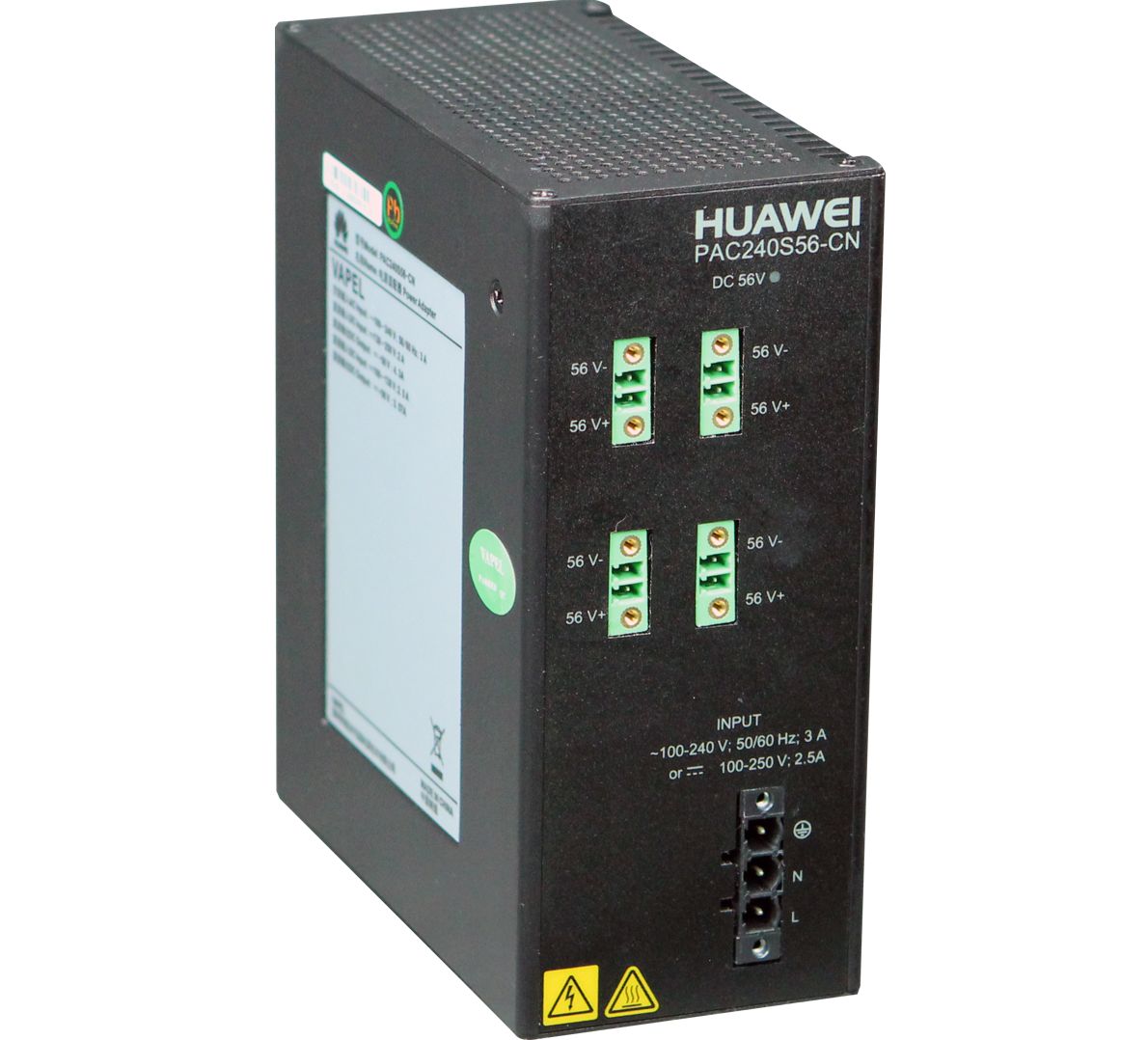

Блок питания Huawei PAC240S56-CN

Basic Information

Description

240 W PoE AC&HVDC Power Module

Part Number

02131265

Model

PAC240S56-CN

Level-1 category

AC PoE power module

Technical Specifications

Dimensions without packaging (H x W x D) [mm(in.)]

150 mm x 60 mm x 133 mm (6.14 in. x 2.36 in. x 5.24 in.)

Weight without packaging [kg(lb)]

1.47 kg (3.24 lb)

Number of inputs

1

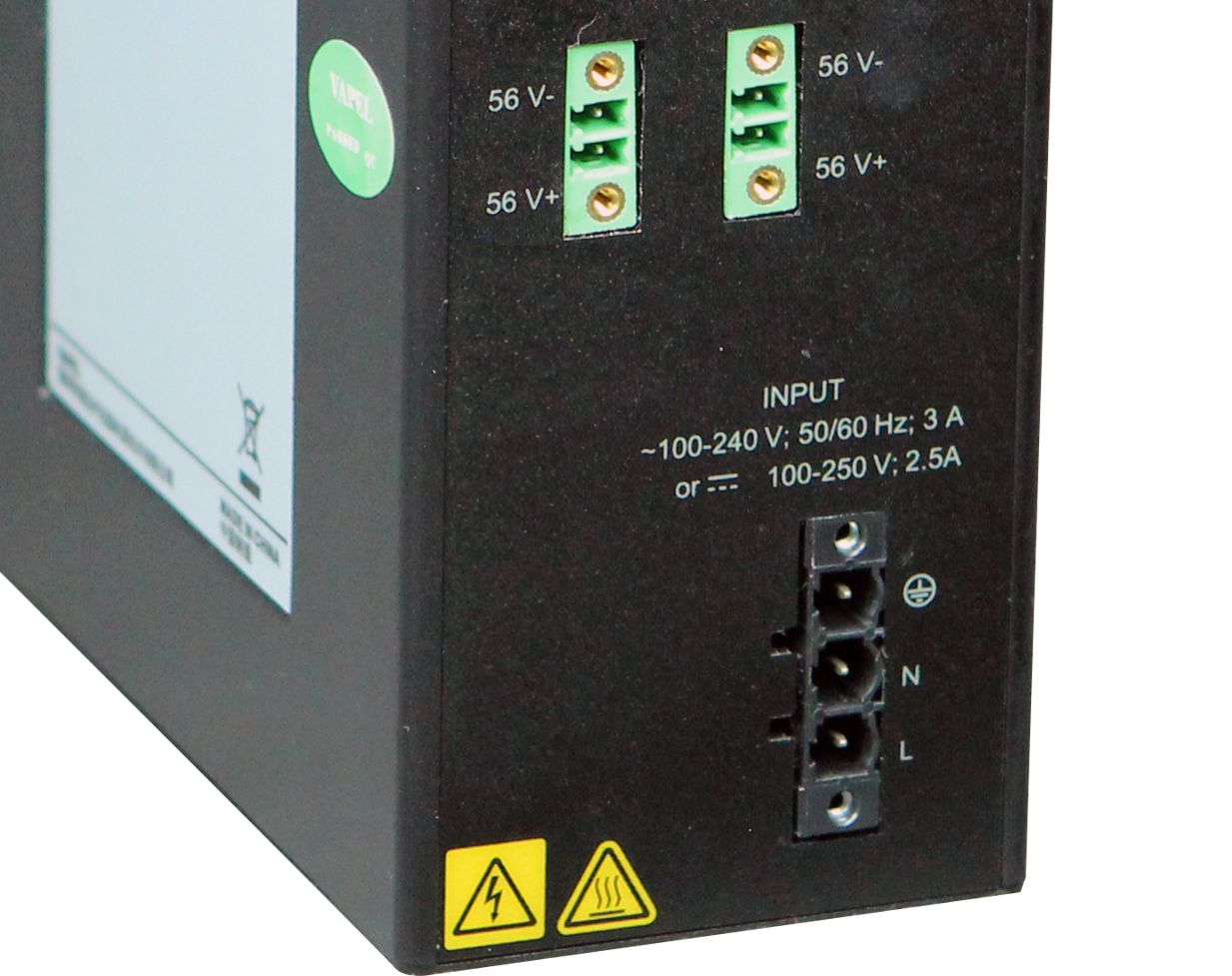

Rated input voltage [V]

100 V AC to 240 V AC, 50/60 Hz

100 V DC to 250 V DC

Input voltage range [V]

90 V AC to 290 V AC, 45 to 66 Hz

77 V DC to 300 V DC

Maximum input current [A]

100 V AC to 240 V AC: 3 A

100 V DC to 138 V DC: 2.5 A

138 V DC to 250 V DC: 2 A

Rated output voltage [V]

56 V DC

Rated output power [W]

Total power: 240 W

Power dissipation Mode

Natural heat dissipation without fans
